Can Flexible UHF Anti-Metal Stickers Solve RFID Signal Loss on Curved Metal Assets?
Standard paper-based UHF RFID stickers suffer from severe signal attenuation when attached to metal surfaces. Metal detunes the antenna, shortens reading distance or even makes tags completely unreadable, creating major bottlenecks for industrial asset management. Rigid ABS anti-metal tags cannot fit curved, irregular metal parts, which limits deployment flexibility. The newly launched UHF Flexible Anti-Metal Sticker addresses these long-standing industrial pain points. With a special shielding isolation layer and bendable PET substrate, this passive UHF RFID sticker maintains stable long-distance reading performance directly on flat or curved metal surfaces. It balances flexibility, low-cost roll format printing and reliable on-metal identification for smart manufacturing, warehouse inventory and equipment lifecycle management.
Product Introduction
The UHF Flexible Anti-Metal Sticker is a passive adhesive RFID smart label developed specifically for metal mount scenarios. It adopts an optimized aluminium etched antenna plus proprietary anti-interference dielectric layer, which prevents electromagnetic signal absorption by metal materials. Made of flexible printable PET material, the sticker can bend gently to fit pipes, cylindrical equipment and irregular metal housings. It comes on roll stock compatible with mainstream RFID thermal transfer printers for on-site encoding, serial number printing, barcode or QR code marking. No external power supply is required. Once deployed, it delivers stable read write performance for full lifecycle asset tracking.
Core Product Features
- Reliable On-Metal Performance: Specially tuned antenna and shielding structure eliminate metal interference; stable reading range is maintained after pasting directly on steel, aluminium and painted metal surfaces.
- Flexible & Curved Surface Adaptability: Bendable PET construction fits curved pipes, round containers and irregular equipment, unlike rigid hard anti-metal tags with shape restrictions.

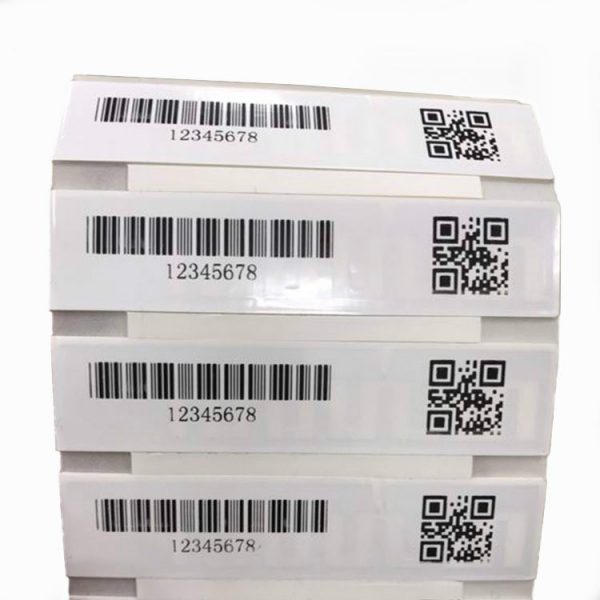

- Roll to Roll Printable & Encodable: Compatible with industrial RFID printers to print logos, serial numbers, barcodes and QR codes, supporting variable data personalization for batch projects.
- Global UHF Protocol Compliance: Follows EPC Class 1 Gen2 / ISO 18000 6C, works seamlessly with most commercial UHF readers and antennas worldwide.
- Strong Adhesion & Environmental Resistance: Heavy-duty 3M adhesive backing; waterproof, dustproof and scratch resistant for indoor and outdoor industrial environments.
- Long Service Life & Rewritable Memory: Up to 100,000 read write cycles, with data retention exceeding 10 years for long-term asset management.
- Cost Effective Roll Packaging: Supplied in continuous rolls for mass deployment, reducing manual labeling time and overall project budget compared with solid anti-metal tags.
Specification
1. Product Name:UHF Flexible Anti-Metal Sticker
2. Base Material:Printable White PET + Anti-metal Dielectric Layer
3. Antenna:Aluminium Etched Antenna
4. Operating Frequency:860-960 MHz (Global UHF Band)
5. Air Interface Standard:ISO 18000 6C, EPC Class1 Gen2
6. Optional Chip:Impinj Monza R6P / NXP UCODE 8
7. Memory Layout:EPC: 128 bit; TID: 96 bit; User Memory: 512 bit
8. Typical Read Range (On Metal):2-10 m (Depends on reader power and antenna gain)
9. Rewrite Cycles:≥ 100,000 times
10. Data Retention:10 Years Minimum
Application
- IT & Office Asset Management: Labeling servers, metal cabinets, laptops and metal office equipment for regular inventory audits.
- Manufacturing Machine & Tool Tracking: Stick onto moulds, jigs, metal fixtures and workshop tools to realize real-time location monitoring.
- Logistics & Metal Container Management: Used for metal turnover boxes, stainless steel pallets, gas cylinders and shipping containers across supply chains.
- Facility & MEP Equipment Management: Asset identification for metal pipes, water pumps, electrical cabinets and fire-fighting equipment inside buildings.
- Automotive & Spare Parts Traceability: Tracking metal spare parts and tool trolleys on automobile production lines.
- Warehouse & ColdStorage Inventory: Suitable for metal racking and storage equipment in normal or low-temperature warehouses.
FAQ
Q1: Can ordinary paper UHF stickers work on metal?
A: Normally no. Metal absorbs RFID electromagnetic waves and detunes the antenna, which greatly reduces read distance or causes reading failure. Anti-metal stickers use a special isolation layer to solve this interference problem.
Q2: Can this flexible sticker be attached to curved metal pipes?
A: Yes. The flexible PET substrate supports mild bending for curved surfaces. Excessive sharp folding should be avoided to prevent damage to the internal antenna.
Q3: Does this tag need a special RFID reader?
A: No. It follows the global EPC Gen2 standard and can be read by any standard UHF RFID reader without extra hardware upgrades.
Q4: Can I print barcodes, QR codes and serial numbers on the sticker?
A: Yes. It supports thermal transfer printing with industrial RFID printers. Custom pre-printing and pre-encoding services are available for bulk orders.
Q5: Are flexible anti-metal stickers reusable after peeling off?
A: The permanent adhesive will lose viscosity once removed. They are designed for one-time fixed asset labeling. For reusable tracking, rigid mount on tags are recommended.
Q6: What is the typical read range on a metal surface?
A: Stable reading distance ranges from 2 m to 6 m. Actual performance varies with reader power, antenna type, metal material and installation environment.
